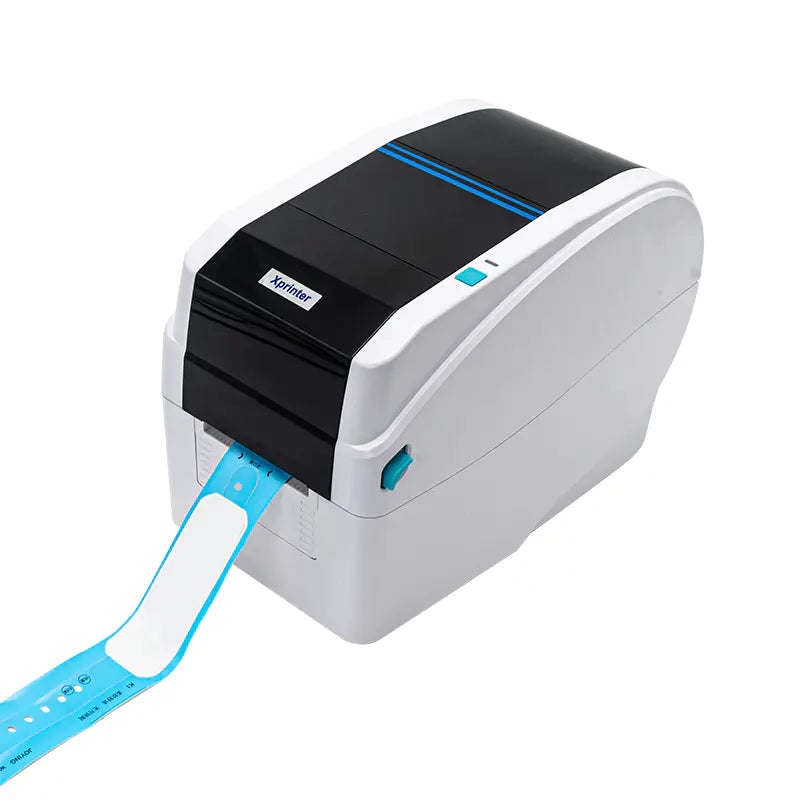

Xprinter XP-T261B 2 Inch Wristband Printer
Product Overview:
-
Print speed up to 203mm/s (152mm/s)
-
Support TSPL, EPL, ZPL, DPL commands
-
Ribbon roll capacity 110m
-
Support multiple material printing
Specification:
Printer Specifications:
|
Resolution |
203DPI |
|
Print Method |
Thermal Transfer/ Direct Thermal |
|
Memory |
8 MB RAM/ 8 MB Flash |
|
Max.Print Width |
2.2 in. / 56 mm |
|
Max.Print Speed |
Up to 8 ips (203 mm/s) |
|
Media Sensors |
Movable Black Mark Sensor/ Fixed Gap Sensor |
|
Emulation |
TSPL, ZPL, EPL, DPL |
|
Interface |
USB |
|
Others |
N/A |
Media and Ribbon Characteristics:
|
Media Length |
0.39 in.~70 in. (10 mm ~ 1778 mm) |
|
Media Width |
1 in. - 2.3 in. (25.4 mm - 60 mm) |
|
Media Roll Size |
4 in./101.6 mm Outer Diameter, Core Inner Diameter: 1 in. (25.4 mm) |
|
Media Thickness |
0.0023 in. (0.06 mm) Min.; 0.01 in. (0.254 mm) Max. |
|
Media Types |
Continuous, Gap, Black mark, Fanfold, Perforated Media |
|
Ribbon Outside Diameter |
1.57 in./40 mm |
|
Max. Ribbon Length |
110 Meters (360 ft.) |
|
Ribbon Width |
1 in. - 2.3 in. (25.4 mm ~ 60 mm) |
|
Ribbon Core I.D. |
0.5 in./12.7 mm |
Environment Condition:
|
Operating Temp. |
5~40℃ (41~104℉) |
|
Storage Temp. |
-40~60℃ (-40~140℉) |
|
Operating Humidity |
25 ~ 85% non-condensing |
|
Storage Humidity |
10 ~ 90% non-condensing |
Fonts/ Graphics/ Symbologies:
|
1D Bar Codes |
Code 39, Code 93, Code 128UCC, Code 128 subsets A, B, C, Coda bar, Interleaved 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China POST, GS1 Data Bar, Code 11 |
|
2D Bar Codes |
PDF-417, Maxi code, Data Matrix, QR code, Aztec |
|
Fonts and Graphics |
Font 0 ~ Font 8 |
Software:
|
Driver |
Windows/ Linux/ Mac/ Android/ Chrome OS |
|
SDK |
Windows/ Linux/ Android/ iOS |
|
Software |
Bartender UltraLite/ Mobile Label Design App |
Accessories:
|
Standard Accessories |
Power Adapter, Power Cord, USB Cable, User Manual, CD, Ribbon Spindle*2, Ribbon for Test, Ribbon Paper Core, Label Roll for Test |
|
Factory Installed Options |
Bluetooth Module, Wi-Fi Module, Peel-off Module, Cutter Module |
|
User Options |
8" External Paper Roll Holder |
Physical Characteristics:
|
Dimension |
246 mm × 140 mm × 170 mm (D × W × H) |
|
Weight |
1.65 Kg |
Product Warranty: 1 Year
