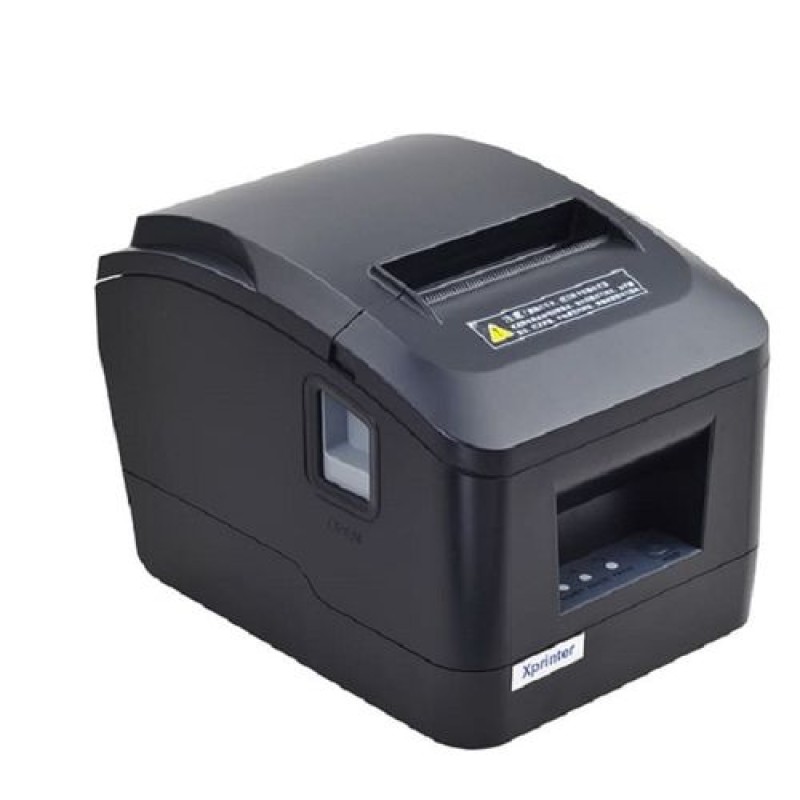

Xprinter XP-D200N net work
| Printing | ||
| Printing method: | Direct thermal | |
| Print width: | 72mm | |
| Column capacity: | 576 dots/line 512 dots/line | |
| Printing speed: | 250mm/s | |
| Interface: | USB+Lan | |
|
Paper Width: |
79.5±0.5mm | |
| Maximum Paper Diameter: |
ᶲ80mm |
|
| Paper Thickness: | 0.06-0.08mm | |
| Line spacing: | 3.75mm (Adjustable by commands) | |
|
Commands: |
Compatible With ESC/POS |
|
|
Character size: |
ANK，Font A: 12×24 dots Font B: 9×17 dots Simplified,traditional Chinese: 24×24 dots |
|
| Cutter | ||
| Auto cutter: | Partial | |
| Barcode Character | ||
|
Code Page: |
PC347（Standard Europe）、Katakana、PC850（Multilingual）、PC860（Portuguese）、PC863（Canadian-French）、PC865（Nordic）、West Europe、Greek、Hebrew、East Europe、Iran、WPC1252、PC866（Cyrillic#2）、PC852（Latin2）、PC858、IranII、Latvian、Arabic、PT151（1251） | |
| Barcode types: |
UPC-A/UPC-E/JAN13（EAN13）/JAN8（EAN8） /CODE39/ITF/CODABAR/CODE93/CODE128 |
|
| Buffer | ||
| Input buffer: | 64Kbytes | |
| NV Flash: | 256Kbytes | |
| Power | ||
| Power adaptor: | AC 110V/220V, 50～60Hz | |
| Power source: | DC 24V/2.5A | |
| Input Voltage: | DC 24V/2.5A | |
| Cash drawer output: | DC 24V/1A | |
| Physical characteristics | ||
| Weight: | 1.0KG | |
| Dimensions: | 184×140×135mm ( D×W×H) | |
| Environmental Requirements | ||
| Work environment: | Temperature: 0～45℃ , humidity: 10～80RH% | |
| Storage environment: | Temperature: -10～60℃ , humidity: 10～80RH% | |
| Reliability | ||
| Cutter life: | 1.5 million cuts | |
| Printer head life: | 150KM | |
| Operating System: | Windows / Linux | |
PRODUCT WARRANTY: 1YEAR
